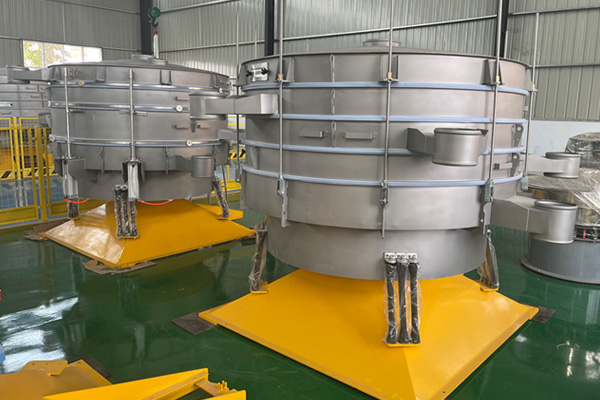

In the processing world of powder and granular materials, screening stands as one of the oldest yet most critical processes — it determines whether downstream products can meet customer requirements for particle size, purity and consistency. Nevertheless, many production lines are plagued by identical dilemmas: conventional vibrating screens suffer from insufficient screening accuracy, inadequate output, frequent screen‑mesh replacement and flying dust. When these pain points keep recurring, it often signals that it is time to adopt a smarter screening solution. The circular gyratory sieve is a new‑generation fine screening equipment built for high throughput, high precision and long service life.
The most distinctive feature of the circular gyratory sieve lies in its precise mechanical simulation of manual sieving motions. Experienced veteran workers perform two simultaneous actions when sifting materials: sieving and winnowing. Horizontal circular motion spreads materials evenly, while slight vertical tossing makes particles "jump" repeatedly to seek opportunities to pass through screen apertures. Through an eccentric shaft or crank‑connecting‑rod mechanism, the circular gyratory sieve combines these two movements into three‑dimensional compound motion — incorporating horizontal circular movement superimposed with mild vertical gyration. Materials travel along an involute spiral trajectory on the screen surface, spreading evenly from the centre and advancing outwards while rotating, achieving full contact with the screen mesh for repeated sieve penetration.
Its adaptability to diverse materials stems from three independently adjustable parameters: eccentricity (adjustable from 25 mm to 40 mm), driving rotational speed (low‑speed V‑belt drive, adjustable between 120 rpm and 360 rpm), as well as radial and tangential angles. Jointly, these parameters govern material residence time and movement paths on the screen surface. Reduce rotational speed and extend travel paths for highly viscous materials; lower acceleration for fragile materials prone to breakage; increase eccentricity to boost throughput. This capability of tuning parameters according to material properties is incomparable to traditional vibrating screens.
High Accuracy: Screening efficiency generally ranges from 90% to 99%, exceeding 95% for most materials. A single unit can separate up to six or more size fractions simultaneously to deliver genuine fine classification.
Large Throughput: Its processing capacity per unit area reaches 3‑10 times that of ordinary vibrating screens, doubling production capacity within the same plant footprint.
Extended Screen‑mesh Service Life: Low‑frequency, low‑acceleration operation drastically reduces screen‑mesh wear. Service life can be 5‑10 times longer than conventional screening machines, cutting mesh‑replacement cycles and downtime costs.
Low Material Breakage: Operating acceleration is roughly 4.5 times lower than traditional vibrating screens. It is especially suitable for spherical, crystalline, fragile and high‑value materials with barely any damage to particle morphology.
Anti‑blinding Performance: High‑efficiency mesh‑cleaning accessories such as silicone bouncing balls, ultrasonic units and rotary brush assemblies can be fitted beneath the screen mesh, maintaining unobstructed apertures even for viscous, agglomerating and ultra‑fine powders.
Eco‑friendly and Low‑noise: Fully enclosed sealing structure prevents dust leakage; operating noise is normally below 75 dB for a cleaner, more user‑friendly working environment.
Screening is never a dispensable process; it acts as the gatekeeper of product quality. As industries impose ever‑higher demands on particle‑size uniformity, batch‑to‑batch stability and environmental compliance, the circular gyratory sieve delivers far more than mere equipment. It represents an upgrade logic: securing premium value via precision, lowering costs via durability and pursuing sustainable development via environmental protection. It elevates fine screening from "merely functional" to "excellently performant", and underpins every production‑line capacity and quality improvement with solid technical foundations — which is essential for the high‑quality development of modern powder processing.
