In the field of fine screening, there has long been an “either-or” dilemma that has troubled countless production enterprises: rotary vibrating screens have high screening accuracy but low capacity, while linear vibrating screens have high capacity but low screening accuracy. Either sacrificing capacity to ensure accuracy, or sacrificing accuracy to ensure capacity—this choice has troubled the screening industry for many years. It was not until the emergence of the Square Gyratory Sifter that this dilemma was truly broken.

Pain Points of Traditional Screening Equipment

For production enterprises in industries such as chemical, metallurgy, food, and new materials, the screening process often determines the quality and market competitiveness of the final product. Taking the lithium battery and new energy industry as an example, the screening of powder materials such as lithium iron phosphate and ternary cathode materials requires both extremely high screening accuracy to ensure product consistency and sufficient processing capacity to meet the needs of large-scale production. Traditional equipment finds it difficult to achieve both, forcing enterprises to make a difficult choice between accuracy and capacity.

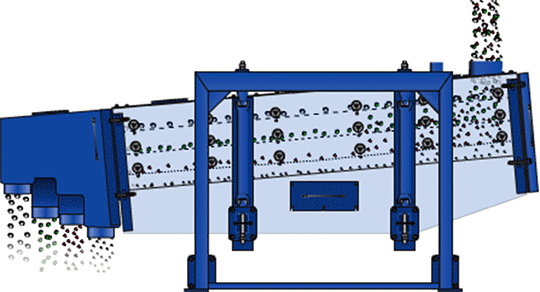

Working Principle of the Square Gyratory Sifter

The reason why the Square Gyratory Sifter can achieve breakthroughs in both accuracy and capacity fundamentally lies in its unique working principle. The equipment simulates the motion principle of manual screening and adopts a reciprocating gyratory motion. After the screening machine starts, the screen box moves back and forth under the action of inertial force, driving the screen surface to swing periodically, causing the materials on the screen surface to move in a directional jumping motion together with the screen box. Materials smaller than the screen openings pass through the screen to become undersize material, while materials larger than the screen openings are continuously rolled and bounced before being discharged through the discharge outlet.

More precisely, the screen surface of the Square Gyratory Sifter is generally arranged horizontally or slightly inclined, with an inclination angle of 0° to 8°. The motion trajectory is a horizontal circular motion at the feed end, gradually changes into an elliptical motion in the middle section, and becomes an approximately reciprocating linear motion at the discharge end. This three-stage motion trajectory design enables the materials to quickly disperse and spread at the feed end, undergo sufficient screening in the middle section, and be accurately discharged at the discharge end, making the entire screening process smooth and efficient.

Core Advantages: A Dual Breakthrough in Accuracy and Capacity

The most prominent advantage of the Square Gyratory Sifter is that it completely solves the contradiction between screening accuracy and capacity being incompatible. On the one hand, the equipment can achieve up to 6 levels of separation, with a screening efficiency of 90% to 99%, making it suitable for powder and granular materials across all fine and ultra-fine ranges; on the other hand, the processing capacity of a single machine can reach 20 to 60 tons/hour, and under the same screening area, its processing capacity is usually 1 to 5 times that of a traditional rotary vibrating screen.

The reason why the Square Gyratory Sifter can achieve this lies in its ability to manually control the movement trajectory and residence time of materials on the screen surface. Within a limited space, the movement trajectory of the materials is a nonlinear curve with continuously changing speed and acceleration. The materials have more opportunities to contact the screen surface, greatly increasing the screening rate. Simply put, the Square Gyratory Sifter gives every particle sufficient time and opportunity to find its own “exit.”

In addition, the Square Gyratory Sifter has high screen utilization and a long service life. Its screening accuracy, efficiency, and screen service life are all 5 to 10 times those of conventional circular screens. The equipment adopts a fully enclosed structure, with no dust flying around and low noise, making it an ideal environmentally friendly screening equipment.

From “Either-Or” to “Best of Both Worlds,” the Square Gyratory Sifter brings more to the industry than just a piece of equipment; it represents a completely new screening concept—screening accuracy and capacity should never be mutually exclusive. As the manufacturing industry moves toward high-quality development, enterprises need not compromise, but seek breakthroughs. The Square Gyratory Sifter is precisely such a breakthrough: with precise engineering design and innovative motion principles, it redefines the possibilities of fine screening, enabling enterprises to pursue excellent quality while also embracing the efficiency benefits of large-scale production.
