In the powder processing industry, screening is one of the most basic and critical processes. However, faced with increasingly stringent product quality requirements and continuously increasing production capacity pressure, the limitations of traditional screening equipment are becoming increasingly obvious — unstable screening accuracy, insufficient capacity, frequent screen clogging, high material breakage rates, and other problems trouble countless production managers. The emergence of the Circular Tumbler Screen is precisely aimed at solving these pain points.
Simulating Manual Screening Principles and Returning to the Essence of Screening
The simplest form of screening involves observing with the eyes and screening with both hands. The design concept of the Circular Tumbler Screen is a mechanical simulation of this process — it is currently the screening equipment that most effectively simulates the principles of manual screening movements.

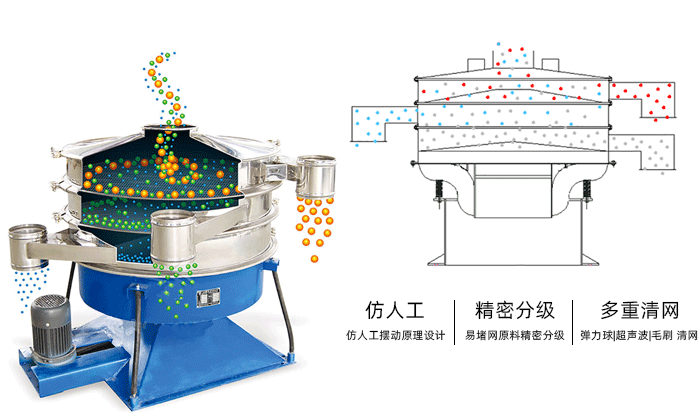

The Circular Tumbler Screen, also known as a flat rotary screen, adopts the bionic principle of manual screening. It cleverly combines the two movement forms involved in manual screening: “screening” (planar circular motion) and  “winnowing” (throwing the material upward). Through special mechanical structural design, the equipment realizes a nonlinear three-dimensional tumbling motion that simulates the principle of manual screening — the material is evenly dispersed from the center to the outer edge of the screen surface and completes the entire screening process in an involute spiral motion.
This unique movement trajectory allows the material to travel along a relatively long path on a relatively small screening surface, greatly improving screening accuracy and efficiency. One Circular Tumbler Screen can replace the use of 3–5 rotary vibrating screens.Core Advantages: Comprehensive Breakthroughs in Accuracy, Capacity, and Service Life
Screening accuracy of up to 90%–99%. The screening accuracy of the Circular Tumbler Screen can reach more than 95%, with a peak of up to 99.2% under certain operating conditions. For fine powder products that require strict control of particle size distribution, this means a qualitative improvement in product qualification rate.
Capacity is 5–10 times that of ordinary vibrating screens. Thanks to the highly efficient screening capability brought by its simulated manual movement trajectory, the output per unit area of the Circular Tumbler Screen is 5 times that of ordinary vibrating screens. In a modification project at a quartz sand plant in Fengyang, Anhui Province, after the introduction of the Circular Tumbler Screen, production capacity increased from 3.2 t/h to 5.1 t/h, an increase of 59.4%.
Screen service life is 5–10 times that of conventional screening equipment. The equipment adopts a low-frequency, large-amplitude operating mode, with an acceleration of only 1/4–1/5 that of vibrating screens, greatly reducing the impact on the screen and significantly extending screen service life. In an actual application at a cellulose company in Wuxi, the screen service life was extended from the original 15 days to 60 days, an increase of 300%.
Lower energy consumption. Taking the quartz sand plant in Fengyang, Anhui Province as an example, energy consumption was reduced from 7.5 kW to 5.2 kW after the modification, a reduction of 30.7%.
Wide Adaptability, Solving the Industry Challenge of “Difficult-to-Screen Materials”
The Circular Tumbler Screen is particularly suitable for screening fine powders, spherical materials, flaky materials, irregular materials, and other materials that are prone to clogging. It can achieve precise separation into 6 grades, with up to 5 layers of screens operating simultaneously. The equipment is available in both carbon steel and stainless steel, allowing reasonable selection according to different material characteristics.
The eccentricity can be adjusted from 25 to 40 mm, while the low-speed V-belt drive can be adjusted from 120 to 360 rpm. The residence time of each product can be precisely controlled by adjusting the radial angle and tangential angle. This highly adjustable feature enables the Circular Tumbler Screen to adapt to different material screening requirements, truly achieving “one machine for multiple applications”.
Against the backdrop of the transformation and upgrading of the manufacturing industry, the refinement and efficiency of the screening process have become an irreversible trend. Based on the scientific principle of simulated manual screening and supported by comprehensive breakthroughs in accuracy, capacity, and service life, the Circular Tumbler Screen is redefining the industry standards for fine screening. It is not only an upgraded replacement for traditional vibrating screens, but also a core piece of equipment for modern powder processing production lines to improve quality and efficiency. Choosing a Circular Tumbler Screen means choosing an upgrade path from “extensive screening” to “precision manufacturing”.
