Many customers purchasing screening equipment only focus on the “tons per hour” figure marked on the nameplate, overlooking a core truth of production lines: the screener is the most vulnerable bottleneck node in the entire process chain.
Sudden surges in incoming material cause accumulation; unplanned screen cleaning leads to mesh clogging; fugitive dust triggers environmental penalties; screen replacement halts output for hours. The high-frequency vibration inherent to conventional screeners creates an inherent conflict with the demands of modern production lines pursuing continuous operation, high throughput and minimal manual intervention. Extra buffer silos, routine patrol labour, dust hoods and standby screeners become mandatory. The production line stretches longer, and operational management grows heavier.

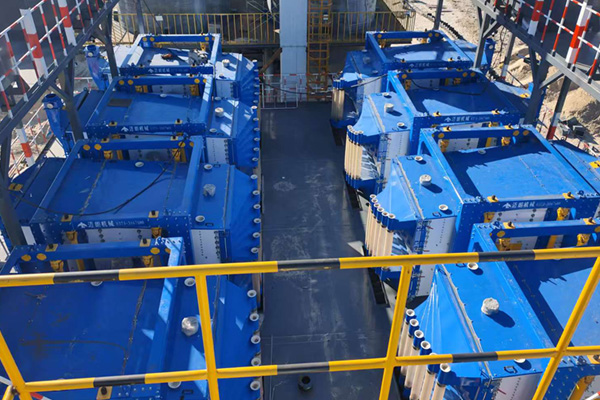

The rectangular gyratory sifter is engineered from the ground up for continuous production lines. Rather than an isolated screening unit, it functions as a material classification hub that integrates seamlessly into the full process flow.
In continuous lines, feed conditions are often unstable. Pulse discharge from elevators, variable-speed belt feeding and instantaneous peaks from pneumatic conveying all impose impact loads on screening equipment. The rectangular gyratory sifter mitigates these challenges via a three-tier design:
Oversized feed inlet with flow-distribution baffles: Flange connections (square or round) can be customised to match process interfaces. Internal baffles spread material evenly to prevent centre piling and uneven screening.
Optional variable-speed feeder: Automatically adjusts feed rate for erratic incoming flows, maintaining an optimal material bed thickness of 3–8 cm on the screen deck, avoiding idle screening or mesh overloading.
High-rigidity buffered screen box: The robust rectangular frame paired with elastic supports absorbs sudden feed shocks without transferring vibration to the base.
Whether fed by screw elevators, bucket elevators, belt conveyors or pneumatic conveying systems, the rectangular gyratory sifter can be directly interfaced. Additional buffer silos are eliminated, saving floor space and cutting intermediate material transfer losses.
Why can a rectangular gyratory sifter deliver 2–3 times the throughput of a conventional linear screener within the same footprint? The answer lies in screen deck utilisation.
Rectangular versus circular decks: With identical outer dimensions, rectangular decks provide 15%–30% larger effective screening area than circular decks. Material follows a gradual spiral diffusion path from inlet to outlets, with no dead zones, so the entire mesh surface works consistently.
Multi-layer simultaneous classification: 3 to 5 screen layers are standard (customisable up to 10), separating feed into 4–6 particle size fractions in a single pass. This replaces multi-unit cascaded screening setups used in traditional layouts; one machine takes the place of a compact screening station.
≥95% screen utilisation rate: The gyratory motion keeps material moving along the mesh surface instead of bouncing away from it. Fine particles get sufficient dwell time to pass through the mesh, eliminating the common issue of suspended material trapping fines inside conventional vibratory screeners.
A critical consideration in line design is where classified material goes. The fully sealed structure and multi-outlet layout of the rectangular gyratory sifter enable highly flexible downstream integration:
Fully enclosed cabinet with silicone/rubber flexible connections: Dust containment is reliable for connection to central dust extraction systems, easily keeping emissions below 10 mg/m³ to meet strict environmental regulations.
Independent discharge spouts: Each screen layer has a dedicated outlet that can directly feed screw conveyors, tube chain conveyors, pneumatic transfer lines or bulk bag fillers without cross-interference.
Quick-release screen frames: When mesh specifications need changing, frames can be pulled out as a whole by releasing tensioners. One operator completes screen swap in 15–30 minutes, with no full machine disassembly required.
This full-link capability — steady intake, precise classification and smooth discharge — makes rectangular gyratory sifters naturally suited for automated lines. No dedicated attendant, no frequent shutdowns, no extra dust control retrofits. Once wired, fed and connected to downstream conveying, the unit runs reliably 24/7.
Conventional vibratory screeners generate intense vertical vibration, with dynamic loads reaching 3–5 times the equipment weight. Heavy reinforced concrete foundations are compulsory, and installation on upper floors is normally unfeasible. The rectangular gyratory sifter operates on a fundamentally different motion principle:
Negligible vertical vibration component: Motion is dominated by horizontal gyratory reciprocation, with extremely low vertical acceleration.

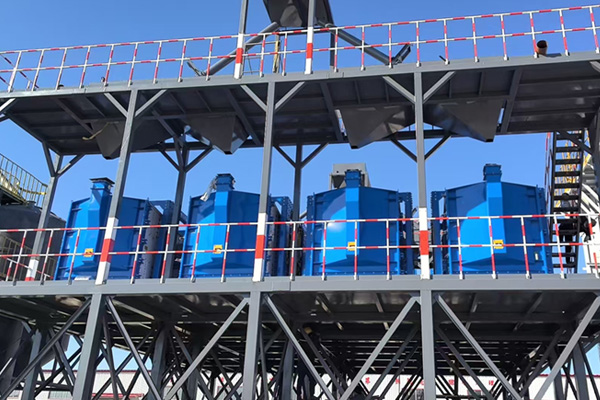

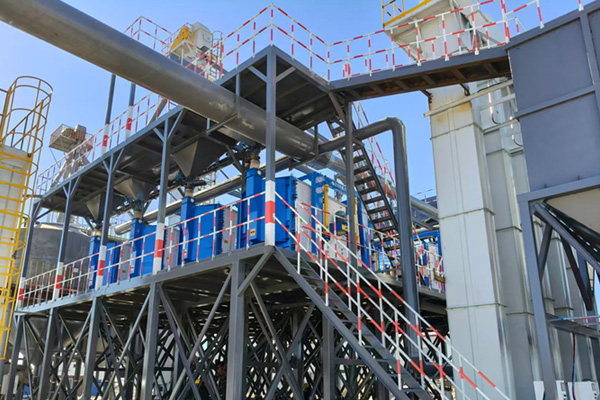

Dynamic load only 1/4 to 1/5 of standard vibratory screeners. Structural requirements are greatly relaxed, permitting installation on light steel platforms, second-floor workshops and retrofitted existing plants.
Elastic support and vibration-damping base: Fitted with rubber springs or composite dampers for stable running, preventing resonance damage to adjacent pipelines and instrumentation.
This is especially advantageous for plant retrofits. Heavy civil foundation work is unnecessary, production downtime is limited, and commissioning can be completed as quickly as the same day after positioning, wiring and pipe connection.
A truly intelligent production line is not merely a collection of machines. It requires every piece of equipment to operate in harmony. With high throughput, low maintenance, full containment and flexible installation, the rectangular gyratory sifter becomes the quiet yet indispensable link in the process. It does not draw attention, yet production cannot run smoothly without it. Screening only stops being a fire-fighting, labour-intensive bottleneck when the whole line’s automation can deliver its full potential. Choosing a rectangular gyratory sifter means choosing a more stable production rhythm: no panic over fluctuating upstream feed, no blockages during classification, no chaos in downstream discharge. The confidence for round-the-clock continuous operation starts with one screener.
