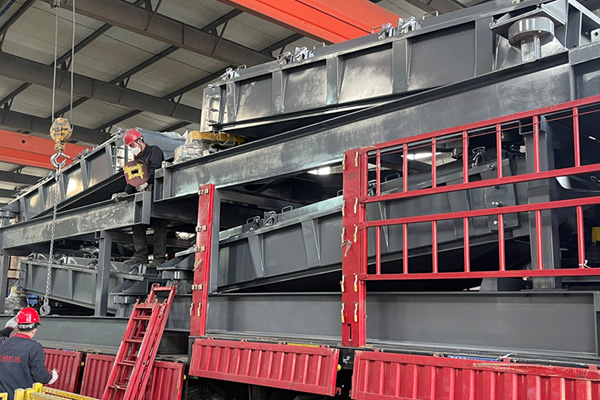

The 2045 composite vibrating screen features a 2m x 4.5m screen size, a screening area of 9 square meters, an 11 kW motor, and a screen layer configuration of 1-3 layers. The screen box travel is 92 mm. It is suitable for materials requiring high screening capacity and precision.

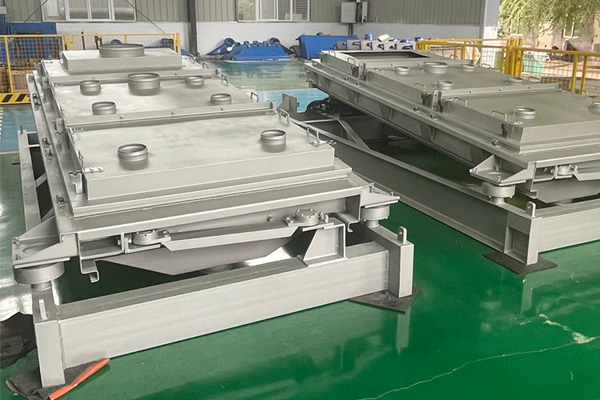

The composite vibrating screen mainly consists of three modules: the screen box body, the vibrating exciter, and the elastic support system. The screen box body is welded from high-quality manganese steel or 304 stainless steel. Internally, multiple layers of screens with different apertures are laid out according to the design. The surface is treated with a special process to form a wear-resistant layer, capable of withstanding continuous material impact. The vibrating exciter, as the power core, uses the centrifugal force generated by the eccentric block to form a stable excitation source, ensuring constant amplitude during long-term operation.

Working Principle of the 2045 Composite Vibrating Screen:

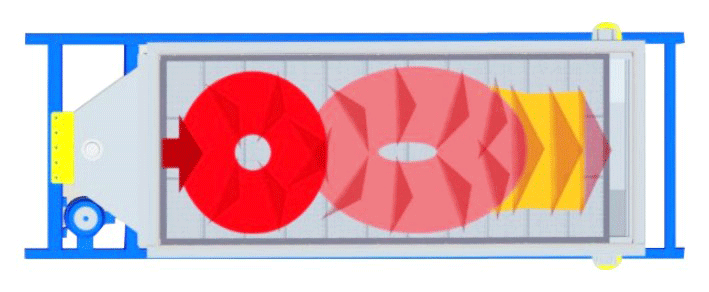

The composite vibrating screen mainly utilizes the motion of an eccentric machine to achieve a high-standard, fine screening process that simulates manual screening. Its motion is a uniform reciprocating rotary motion, with an inclination angle typically between 3 and 9 degrees. The material undergoes a horizontal circular motion at the feed end, gradually transitioning to an elliptical motion along its length, and finally to an approximately reciprocating linear motion at the discharge end. After entering the screen body through the feed inlet, the material is evenly distributed across the screen surface under the influence of inertial shaking. Smaller particles below the material layer pass through the screen quickly, while larger particles move upwards towards the discharge end, achieving high-efficiency and high-precision screening.

Features of the 2045 Composite Vibrating Screen:

High capacity and high screening accuracy; High screen utilization rate, long service life, and excellent self-cleaning effect; Good sealing effect and low noise; Almost no vertical impact load on the bottom surface and surrounding buildings.

As one of the core equipment products in the field of intelligent screening by Xinxiang Mailang Machinery, the composite vibrating screen is used in screening production lines in many industries and has gained wide customer recognition for its excellent screening and grading capabilities. We consistently adhere to the principles of "quality assurance, reputation first, quality-oriented, and win-win cooperation," and are customer-demand oriented to ensure the manufacture of high-quality products that are stable in performance, of superior quality, aesthetically pleasing, and easy to operate.

Clearly separated particles, intelligent screening –Mirant Xinxiang Machinery
