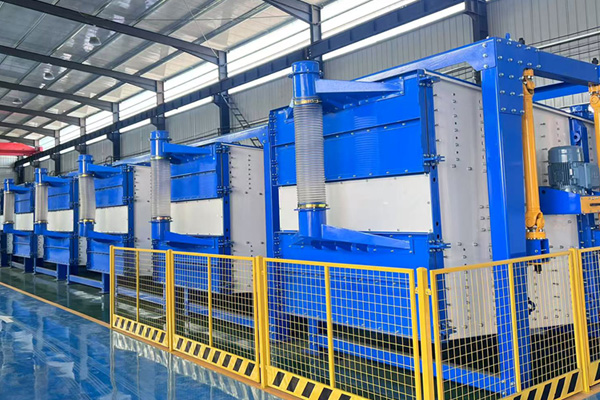

The 2040 square gyratory screen has a screen size of 2 meters by 4 meters, a screening area of 8 square meters, a motor power of 11 kW, an adjustable screen angle of 5-8 degrees, and 1-10 screen layers that can be freely combined. The screen box stroke is 25-60 mm, and it can be designed for double or single screening, simultaneously screening five materials from 6 mesh to 140 mesh.

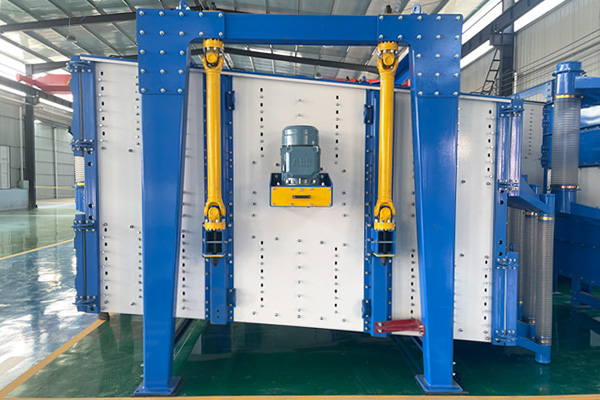

The 2040 square gyratory screen consists of a screen box, screens, vibrator, support device, and drive motor. The screen box, typically square in shape, can hold multiple layers of screens and is responsible for carrying and screening materials. Its right-angled structure allows for stronger airflow at the boundary areas, effectively preventing material accumulation at the screen frame edges.

The screen assembly, a key component, is usually made of 304 stainless steel or nylon, which is wear-resistant and corrosion-resistant. Different mesh sizes can be selected according to screening requirements. A bouncing ball cleaning device is installed at the bottom of the screen frame, utilizing the impact force generated by the screen movement to achieve automatic screen cleaning.

The vibrator, powered by an electric motor, causes the screen box to sway and shake, simultaneously applying horizontal rotational force and vertical vibration force to the screen mesh. It is the core component responsible for the screen box's movement.

The support device ensures the stability of the screen box; common structures include universal joints and spring supports.

The drive motor provides power to the vibrator.

2024 Square Gyratory Screen Working Principle

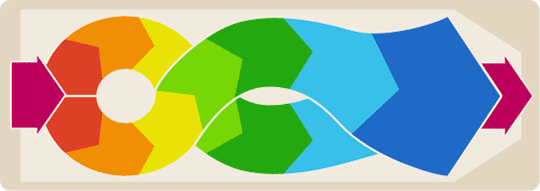

2040 Square Gyratory Screen Running Trajectory

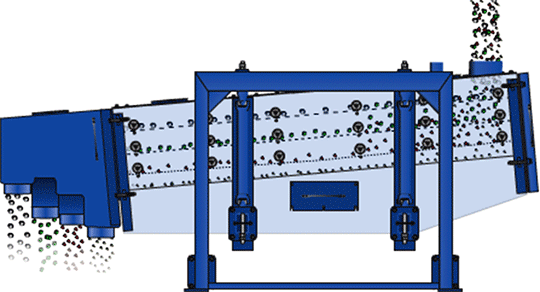

Working Principle of the 2040 Square Gyratory Screen:

It employs motion simulating manual sieving, combining "sieve motion" (planar circular motion) and "scoop motion" (upward material throwing). This allows the material to rapidly spread across the full width of the screen at the feed end, propelling the particles forward and ensuring contact with the screen surface. This achieves high throughput and high sieving efficiency.

Features of the 2040 Square Gyratory Screen:

High sieving accuracy, increased capacity, optional combined discharge for high utilization; Optional single-feed design with 1-5 layers to dual-feed design with up to 10 layers; More durable, bolt-type structure for long service life; 360-degree gyratory motion, automatic discharge, no dead corners; Enclosed structure for excellent sealing and low damage to raw materials; Excellent self-cleaning effect and easy screen replacement.

As a core product of Mirant Xinxiang Machinery in the field of intelligent screening, the square gyratory screen has gained wide recognition from customers for its excellent screening and grading capabilities, providing solutions for screening production lines in numerous industries. With over 20 years of experience in the screening equipment field, we adhere to the principles of "quality assurance, reputation first, quality-oriented, and win-win cooperation," focusing on customer needs to ensure the manufacture of high-quality products that are stable in performance, of superior quality, aesthetically pleasing, and easy to operate.
