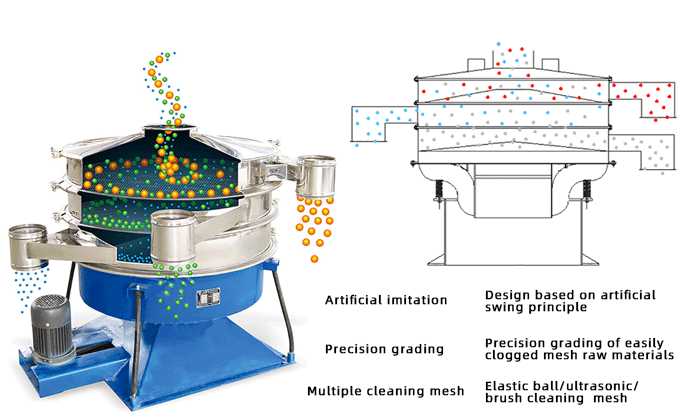

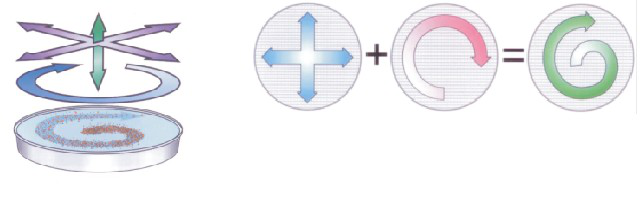

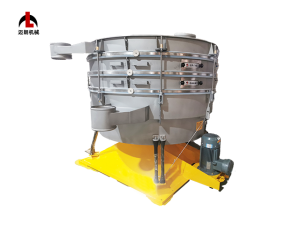

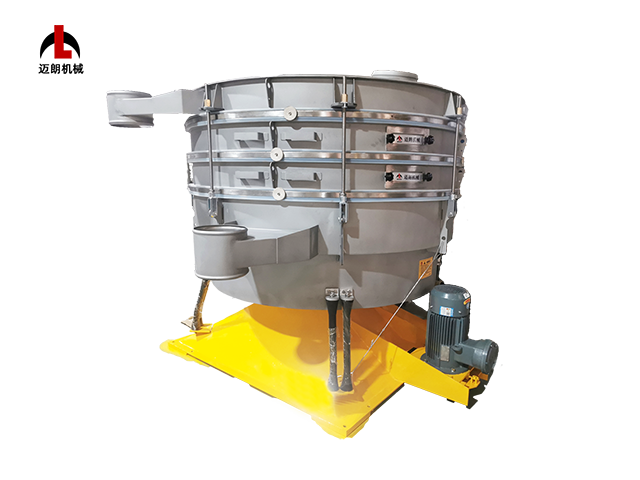

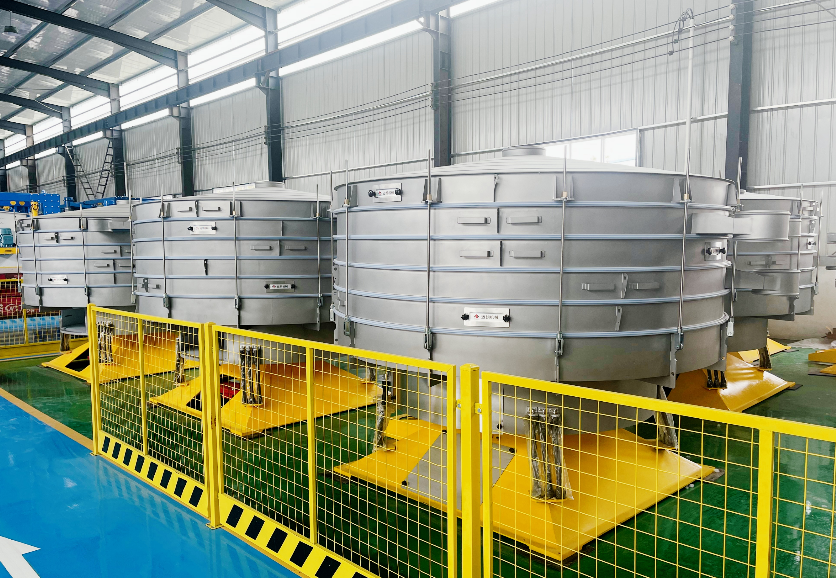

Circular Swing Screen is unique design which to meet the large output, Our company independent research and development production series which is the most effective principle to takes the most effective simulation of artificial sieving moment (Sieving precision, efficiency, service life is 5-10 times than common cylinder sieve), for the processing of all the fine and ultra-fine powder and special materials, particularly suitable for materials which are difficult to classify.
1. Up to 5 times outlet compared than common sieving machine.

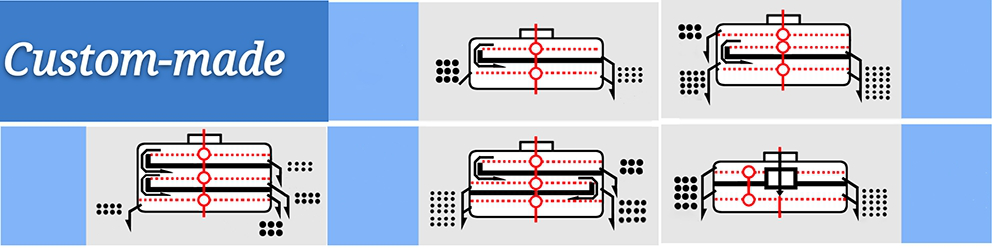

2. At most 6 Level separation.
3. Sieving efficiency is as high as 90%-95%.
4. When using the silicone rubber balls, ultrasonic and other high-performance mesh-leaning device system, the sieve aperture will not be blocked.
5. Enclosed cleaning dust, safe operation: the acceleration is 4.5 times lower than common vibration screen.
6. Noise<75dB.Re-optimization is balanced, ground-based dynamic load is low.
It can be used for Chemical, food and spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, fodder, fertilizer, sugar, salt, renewable industry.
Model | YBS-600 | YBS-1000 | YBS-1200 | YBS-1600 | YBS-2000 | GZY-2600 |
Diameter(mm) | 650 | 1040 | 1250 | 1580 | 1880 | 2650 |
Sieving area(m²) | 0.29 | 0.76 | 1.1 | 1.8 | 2.6 | 5.3 |
Spatial requirement | 0.4 | 1.8 | 2.5 | 3.9 | 5.6 | 9.6 |
Max sieve layer(s) | 5 | 5 | 5 | 5 | 5 | 5 |
Power Consumption(Kw) | 0.25 | 1.5 | 2.2 | 2.2 | 3 | 5.5 |
Base(mm) | 630 | 900 | 1100 | 1400 | 1800 | 1940 |
Layers | 5 layers | 5layers | 5 layers | 5 layer | 5 layer | 5 layer |
1. Help high-end customer to choose a suitable machine and develop local market.
2. We can offer an accurate quotation according to customer's model or drawings.
3. The drawing can be send if needed, we can help you design the whole line based on your model.
4. OEM and label service will be always available.
1. 24 hours service online and fast response within 12 hours.
2. Quality warranty is 12 months from the shipping date.
3. Provide assembly instruction, technical date and related soft copies or video to ensure customer could install and debug by themselves.
