In the starch production process, screening equipment is mainly used for screening, grading and separation of impurities. Screening can effectively remove impurities, thereby obtaining a purer starch product. Fine screening is a key link in determining the quality of starch products. Traditional vibrating screens often face problems such as easy blockage of screen holes, insufficient precision and low efficiency. The selection of screening equipment is of great significance to starch production.

In order to improve screening efficiency and ensure starch quality, attention should be paid during production operations:

1. Ensure the cleanliness of the screen to avoid residues affecting the screening effect;

2. Control the pouring speed of starch materials and convey and screen them in a uniform manner;

3. Reasonably adjust the speed of the screening equipment to avoid too fast or too slow screening results;

4. The impurities and pure starch after screening should be stored separately to avoid confusion.

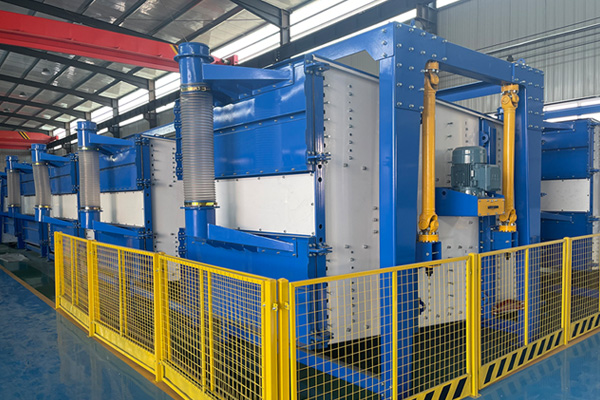

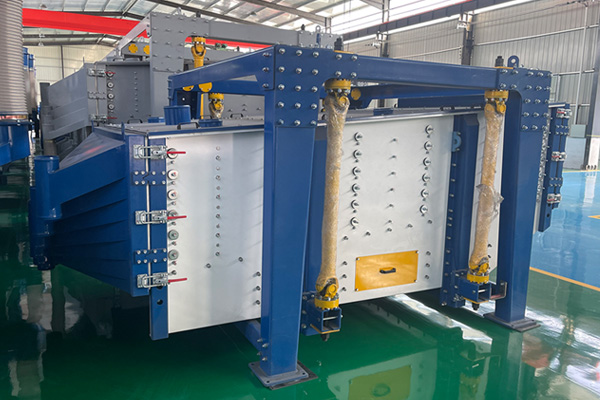

Starch, as the basic principle in the fields of food, medicine, and chemical industry, has extremely high requirements for fine screening. Taking corn starch as an example, it is necessary to achieve accurate screening and grading of 80-200 mesh (0.075-0.18mm). Traditional screening equipment is prone to fiber adhesion, which leads to screen clogging, directly affecting the screening efficiency. The square swing screen adopts the "swing plus light throwing" compound motion that imitates manual screening, which can avoid the high-speed impact of materials to destroy the starch crystal structure and significantly improve the screening rate of fine powder. Food-grade silicone elastic balls are equipped under the screen to clean the screen holes in real time at high frequency to prevent clogging. The square swing screen supports 2-5 layers of screens, and a single machine can complete the screening and grading of materials with various particle sizes. Taking potato starch as an example, it can simultaneously screen and separate coarse fiber (upper layer), qualified starch (middle layer), ultrafine powder (bottom layer) and other particle sizes.

As the core equipment product in the field of intelligent screening of Mirant Xinxiang Machinery, the square swing screen has been recognized by customers for its excellent screening and grading capabilities in the starch fine screening production line. We always adhere to the tenet of "quality assurance, reputation first, quality-oriented, win-win cooperation" and customer demand-oriented, so as to ensure the manufacture of high-quality products with stable performance, excellent quality, beautiful appearance and easy operation.
